BEC M600i 5G Industrial/In-Vehicle 5G Router
BEC Technologies
The M600i 5G Industrial/In-Vehicle 5G Router is a high-performance all-in-one fixed/mobile wireless communications platform with advanced software enabling high availability, reliable and secure connectivity for mission-critical applications. The compact, rugged design integrates dual SIMs, four-port Gigabit Switch, 802.11ac, and 802.11n Wi-Fi Access Point, embedded multi-GNSS receiver for GPS or GLONASS, and ignition sensing for in-vehicle applications.
High performance & reliability
- Dual SIMs
- Dual WAN Load Balancing
- Wi-Fi security with WEP 64/128, WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK
Embedded 5G NR sub-6GHz
- Embedded high performance 5G module
- Supports both 5G NSA and SA modes
- Supports downlink 4x4 MIMO
Secure VPN Connections
Embedded IPSec, PPTP, L2TP, GRE and OpenVPN secure VPN connection with powerful encryption
Auto-failover/failback
- Dual WAN Failover/ Failback
- WAN: 5G NR sub-6GHz (and/or GbE WAN)
Rugged deployments
- Hardened enclosure with Industrial-grade components
- Withstand -40°C ~ 60 °C and protect from shock, vibration, etc.
In-Vehicle
- Small form factor with optional mounting kits, easily installed by a single person
- Ignition power control option when mounted within vehicles
Global Navigation Satellite System
- GNSS engine for GPS or GLONASS system
- Real-time asset tracking and location data-based
USB Application Server
Storage/NAS: embedded FTP server, SAMBA server
High Availability and Network Resilience
The M600i 5G is a feature-rich industrial-grade router coupled with robust network processing and Multi-WAN connectivity, purpose-built for network reliability and business continuity. In the event of a connectivity failure of the primary WAN interface, traffic is automatically redirected to the secondary WAN interface, it will perform failback when the primary interface connection is restored. The M600i 5G also supports dual SIMs for redundancy between carriers' networks.
Carrier-Grade Wireless LAN and Enterprise-Class Secure Connections
The M600i 5G supports concurrent dual-band 802.11a/n/ac (5GHz) and 802.11b/g/n (2.4GHz) Wireless LAN with 2400 Mbps wireless speed, allowing for Wi-Fi Hotspot functionality anywhere there is cellular signal. The captive portal enables highly secure connectivity with multiple authentication options and extensive controls for access and bandwidth management.
Customization options allow for operator logos, branding, or advertisement placement. The M600i 5G supports multiple VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between offices.
Designed for Industrial Environments
The M600i 5G supports an extended operating temperature range from -40 to 60º C (-40 to 140ºF) and a flexible power input voltage range of 10-56V DC making it suitable for diverse environments and applications. To enable simple, reliable, and efficient integration, the
ultra-compact and lightweight design incorporate highly flexible mounting options to ensure that the device and can be easily mounted anywhere.
High performance & reliability and easy to manage and access
- Offer 5G NR sub-6GHz broadband connectivity
- Multi-WAN interfaces: Dual SIMs and GbE WAN for network resilience and reliable connectivity
- Dual SIM Single Standby (DSSS)
- 4 Gigabit Ethernet ports
- Network expandability - load balancing and reliable connectivity - auto-failover/failback
- Embedded GNSS option for real-time asset tracking and location data-based applications*3
- Local and Remote management via Web GUI, SNMP or CWMP (TR-069)
Carrier-Grade Wireless-LAN
- Compliant with IEEE 802.11a/b/g/n/ac standards
- Simultaneous Dual-Band Wireless up to 2400Mbps
- 4x4 802.11a/n/ac (5GHz) and 3x3 802.11b/g/n (2.4GHz)
- High Transmit Power Design
- Wi-Fi Hotspot with Captive Portal
- Multiple SSID with Client Isolation
Enterprise-Class Secure VPN Connections
- Embedded IPSec, PPTP, L2TP, GRE and OpenVPN secure VPN connection with powerful encryption
Compact and unobtrusive design
- Small form factor with optional mounting kits, easily installed by a single person
- Ignition power control option when mounted within vehicles
Designed for challenging / rugged deployments
- Hardened enclosure with Industrial-grade components
- Designed to withstand heat, humidity and protect from shock, vibration, etc.
Ideal Solution for
- smart Bus and Public Safety applications

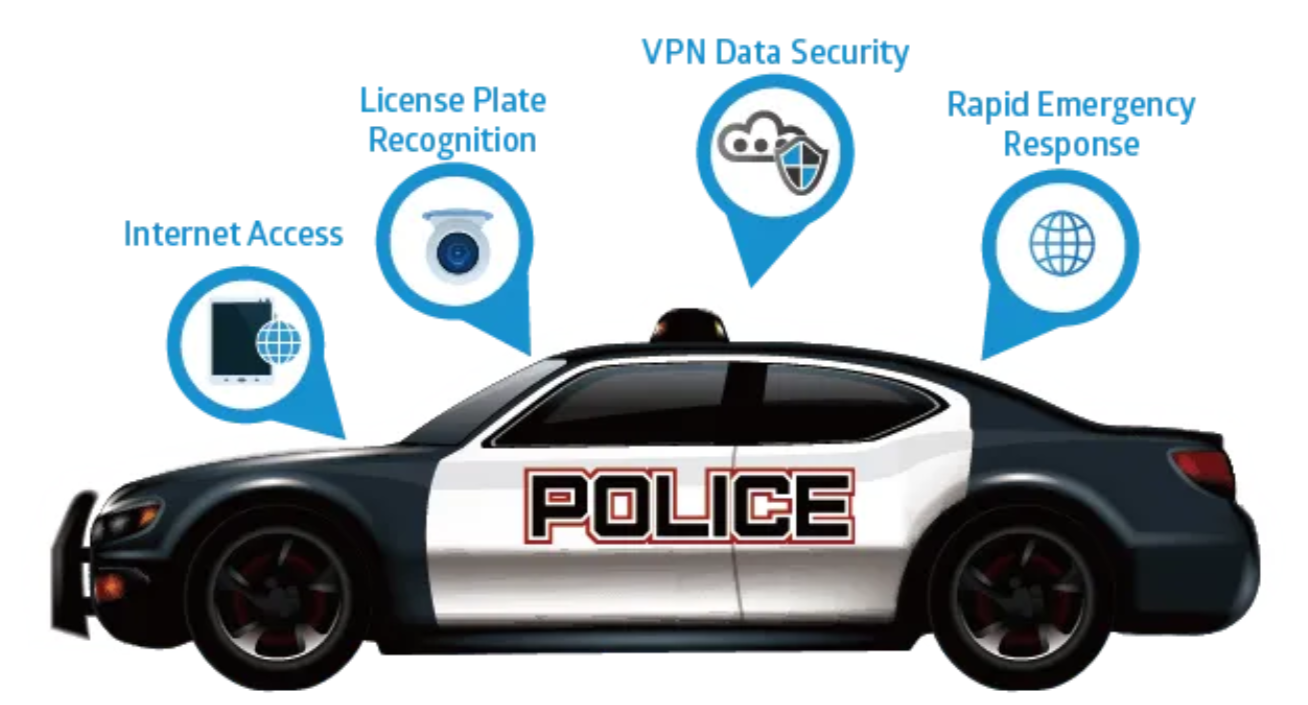

Application Diagram

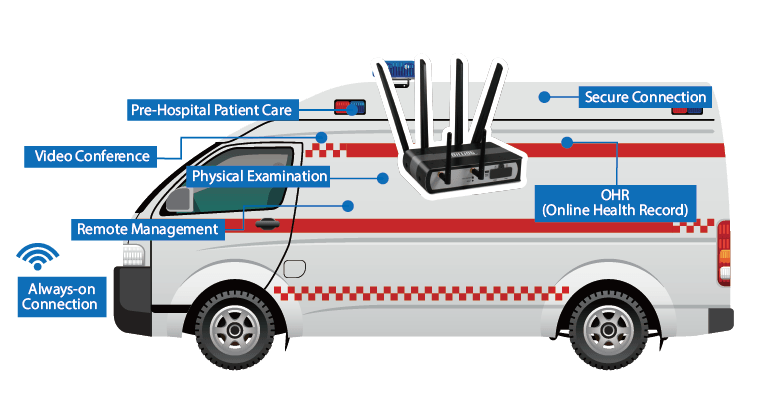

5G/LTE can enhance emergency responders operations by delivering high-data-rate services to wide coverage areas. Such communication links can support digital imaging, video streaming, voice, large data download, and other capabilities which cannot be supported over the traditional narrowband network. 5G/LTE Wireless broadband networks allow mission-critical information to be exchanged in real-time, anytime, anywhere. Database lookups, dispatch messaging, mug shots, video/ surveillance feeds, and broadcasting can now be achieved within seconds instead of hours.
Billion M600i 5G provides dual 5G/LTE modules, enable in-vehicle WiFi, real-time imaging streaming, and medical data transferring with instant failover capability. Ambulance staff is allowed to examine patient media records, plan driving routes, and communicate with emergency room and fleet dispatchers to allocate the available vehicle resource to resolve emergency scenarios. The dual-Radio supports multi-channel video recording and streaming with always-on, extensive broadband feasibility. Thus, Billion M600 can transmit the images of a patient's injuries from the ambulance to the emergency room for treatment advice and minimize the gaps of medical care upon arrival at hospitals.
Benefits:
- Support digital imaging, video streaming, voice, and large data download.
- Enhance emergency responders operations by delivering high-data-rate services to full coverage areas.
- Allow mission-critical information to be exchanged in real-time, anytime, anywhere.
- Achieve database lookups, dispatch messaging, mug shots, video/surveillance feeds, and broadcasting within seconds
- Support rapid boot up and wake-on-call functions.
- Reduce delays and enhance driving safety through the integration of tire pressure monitoring system and forwarded collision warning.
A reliable Smart Bus solution that can provide free or pay-for-use WiFi Hotspot service in the moving vehicles and the delivery of driver and vehicle status back to the centralized dispatch center for real-time management. Billion M600 provides an excellent in-vehicle networking CPE equipped with dual radio and SIM, assisting system integrators in designing an always-on wireless architecture with the advancement of onboard mobile service and HotSpot captive portal. Supporting 10-56V DC power input designed for handling transient voltage and GPS/GLONASS for location tracking, Billion M600 is an industrial-grade, in-vehicle computing router with authentication login to enable a Smart Bus experience.
Benefits:
- Dual 5G/LTE interfaces enable reliable Internet access for in-vehicle broadband applications
- WiFi hotspot with captive portal offers wireless access in vehicle for passengers
- Ignition sensing controls M600 power on and off, and avoids draining the vehicle battery
Industrial Solutions
When compared to existing 5G/LTE M2M cellular devices, the most notable benefit of 5G/LTE is the higher performance and capacity which result in significantly faster download and upload data rates. While faster data rates are great for backbone network communication and remote surveillance industrial applications, the significantly lower latency (time delay) of 5G/LTE is more important for M2M industrial applications that rely on real-time information, such as controlling sensitive equipment, industrial alarms, and tracking management
